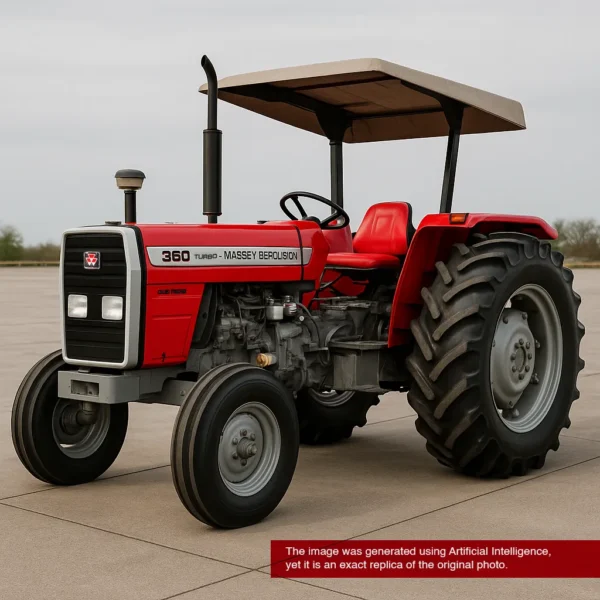

MAI MF-360 2WD Tractor

Description

• Maximum engine power at 2,250 rpm: 60 (B.S.) hp*
• Maximum torque at 1,350 rpm: 212 Nm
• Maximum PTO power at rated engine speed: 48 hp**
• *Certified to BS AU 141a
• ** Manufacturer’s estimate

• Type: Diesel / T 3.1524
• No. of Cylinders: 3
• Injection: Direct
• Bore: 91.4 mm
• Stroke: 127 mm
• Capacity: 2.5 L
• Compression Ratio: 16.5:1
• Starting Aid: Thermostat
• Throttle Control: Hand and foot
• Cooling: Water
• Air Cleaner Type: Oil bath
• Air Pre-Cleaner: Over Bonnet, Air Swirl
• Fuel Filter: Dual, high capacity
• Exhaust: Vertical
• Oil Cooler: Water cooled

• Voltage: 12V, Negative Earth
• Battery: 118 Ah
• Starter: 2.2 kW
• Alternator: 32 Amp

• Type: Dual Clutch
• Diameter: 305 x 254 mm

• Type: Sliding Spur
• Gears: 8 forward, 2 reverse
• Tyres: 14.9 / 13-28 rear tyres
• Forward 1: 2.6 kph
• Forward 2: 3.8 kph
• Forward 3: 5.2 kph
• Forward 4: 7.0 kph
• Forward 5: 10.4 kph
• Forward 6: 15.2 kph
• Forward 7: 20.8 kph
• Forward 8: 28.0 kph
• Reverse 1: 3.5 kph
• Reverse 2: 14.4 kph

• Type: Live
• Engine speed at 540 PTO rpm: 1,789 rpm
• Shaft Diameter: 35 mm
• No. of Splines: 6

• Functions: Draft control, Position control, Response control, Constant pumping
• Pump Type: Reciprocating Ferguson Pump
• Max. Oil Flow: 16.0 L/min
• Max. Pressure: 21 MPa (normal temp)
• Max. Lift Capacity (lower links horizontal): 2,145 kg
• Lower Links: With Cat. I & II interchangeable balls

• Type: Box Section, Adjustable

• Type: Hydrostatic

• Brake Type: Oil immersed, Multi-disc
• Brakes Actuation: Mechanical
• Axle Type: Straddle Axle with Epicyclical Reduction Unit
• Parking Brake: Hand Lever Operated
• Differential Lock: Mechanical

• Gauges: Tachometer, Hourmeter, Fuel level, Battery condition, Water temperature
• Warning Lights: Direction indicators, Battery charge, Headlight main beam, Low engine oil pressure, Brake lights, Auxiliary socket

• Front: 7.50 – 16 (6PR)
• Rear: 14.9 / 13 – 28 (6PR)

• Front Axle: 1,275 – 1,884 mm
• Rear Axle: 1,438 – 2,125 mm

• Gross Weight: 2,010 kg
• Wheelbase: 2,032 mm
• Overall Length: 3,353 mm
• Overall Width (min): 1,890 mm
• Height Over Exhaust: 2,236 mm
• Height Over Steering Wheel: 1,499 mm
• Turning Circle with Brakes: 5,867 mm
• Turning Circle without Brakes: 6,833 mm
• Ground Clearance (Under Gearbox): 400 mm

• Fuel Tank: 47.5 L
• Engine Pump: 6.8 L
• Cooling System: 11.7 L
• Hydraulic System: 36.0 L
• Steering Box: 2.0 L
• Oil Bath Air-Cleaner: 0.51 L

Weight frame without weights, standard toolbox with tools, Top link, Top link end Cat-I & II balls, Check chains, Spring suspension seat, Flat top fenders, Operator’s and service manual.

Front end weights, Swinging drawbar, Sun Canopy, Pintle Hook & 9 Hole drawbar.
