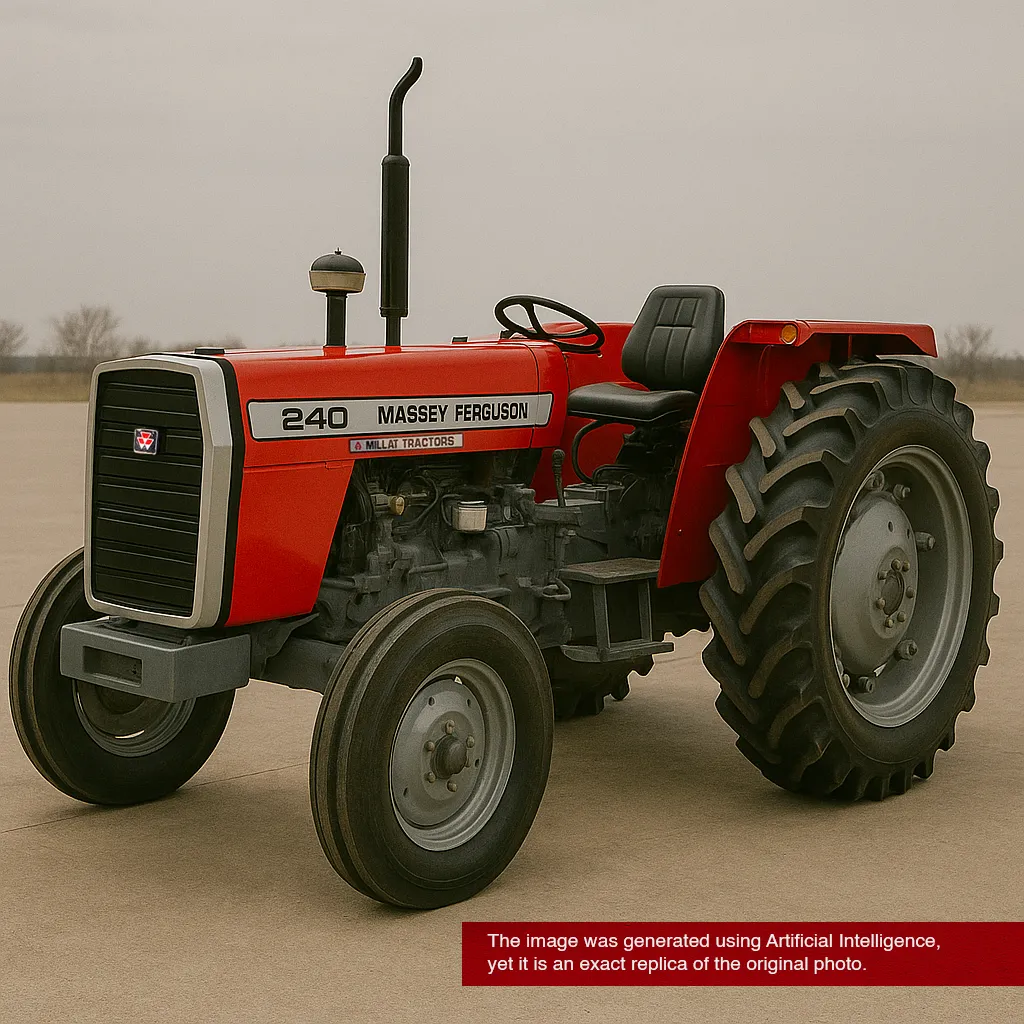

MAI MF-240 Tractor

Description

• Maximum engine power at 2,250 rpm: 50 hp*
• Maximum torque at 1,400 rpm: 172 Nm
• Maximum PTO power at rated engine speed: 44 hp*
• *Certified to BU AU 141a: (1971)
• ** Manufacturer’s estimate

• Type: Diesel AD 3.1524
• No. of Cylinders: 3
• Injection: Direct
• Bore: 91.4 mm
• Stroke: 127.0 mm
• Capacity: 2.5 L
• Compression Ratio: 16.5:1
• Aspiration: Natural
• Starting Aid: Thermostart
• Throttle Control: Hand and foot
• Cooling: Water
• Air Cleaner: Over Bonnet, air swirl
• Fuel Filter: Dual, high capacity
• Exhaust: Vertical

• Voltage: 12 V, Negative Earth
• Battery: 110 Ah
• Starter: 2.2 kW
• Alternator: 32 Amp

• Type: Dual clutch
• Diameter: 305 x 254 mm

• Type: Sliding Spur
• Number of Gears: 8 forward, 2 reverse
• Forward 1: 2.7 kph
• Forward 2: 3.9 kph
• Forward 3: 5.3 kph
• Forward 4: 7.2 kph
• Forward 5: 10.6 kph
• Forward 6: 15.6 kph
• Forward 7: 21.3 kph
• Forward 8: 28.6 kph
• Reverse 1: 3.6 kph
• Reverse 2: 14.5 kph

• Type: Live
• Engine speed at 240 PTO rpm: 1,789 rpm
• Shaft Diameter: 35 mm
• Splines: 6

• Functions: Draft control, Position control, Response control, Constant pumping
• Pump Type: Reciprocating Ferguson Pump
• Max. Oil Flow: 16.7 L/min
• Max. Pressure: 19.2 MPa
• Max. Lift Capacity: 1,415 kg
• Lower Links: Cat. I & II interchangeable balls

• Type: Box section, adjustable
• Steering: Manual

• Brake Type: Outboard drum brakes
• Actuation: Mechanical, independent or locked together
• Parking Brake: Hand lever operated
• Differential Lock: Mechanical

• Gauges: Tachometer, Hourmeter, Fuel level, Battery condition, Water temperature
• Warning Lights: Direction indicators, Battery charge, Headlight main beam, Low engine oil pressure, Brake lights

• Front: 6.00 – 16 (6PR)
• Rear: 12.4 / 11 – 28 (6PR)

• Front: 1,245 – 1,854 mm
• Rear: 1,321 – 1,930 mm

• Gross Weight: 1,690 kg
• Wheelbase: 1,892 mm
• Overall Length: 3,260 mm
• Overall Width (min): 1,651 mm
• Height over Exhaust: 2,145 mm
• Height over Steering Wheel: 1,410 mm
• Turning Circle (with brakes): 5,560 mm
• Turning Circle (without brakes): 6,200 mm
• Ground Clearance under Gearbox: 338 mm

• Fuel Tank: 47.5 L
• Engine Oil: 6.8 L
• Cooling System: 10.2 L
• Hydraulic System: 33.0 L
• Steering Box: 0.9 L
• Air-Cleaner: 0.65 L

Weight frame without weights, toolbox with tools, top link and ends, Cat-I & II balls, check chains, operator’s manual.

Front end weights, swinging drawbar, sun canopy.
